Features
- Brushless Stainless-steel body with rigid, robust and durable structure
- Anti tail function with auto lock after turn
- Self Recovery and corrective measure ability
- RS 485 communication protocol for interface
- Open signal with memory
- Input signal pulse 12 V
- Auto reset function, auto cancel pass through and close gate if no movement
- Automatic count indicating user number
- Open direction adjustable even during power off
- Prohibiting opposite direction movement
- Direction indication function showing access allow or denied

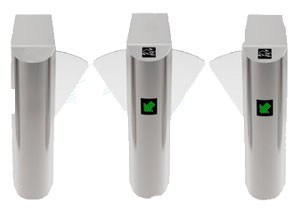

FLIP RT
- POWER SUPPLY: AC 220±10% 50 Hz
- BODY STRUCTURE: SS 304
- DRIVE VOLTAGE: 24 Vdc
- PASSAGE WIDTH: 550 mm
- OPEN SPEED: 0.5 s
- PROTECTION CLASS: IP 43
- PASS SPEED: 30 person/min
- OPERATING TEMPERATURE: -15ᴼC to +60C
- DIMENSION: 100mm x 300mm x 980mm

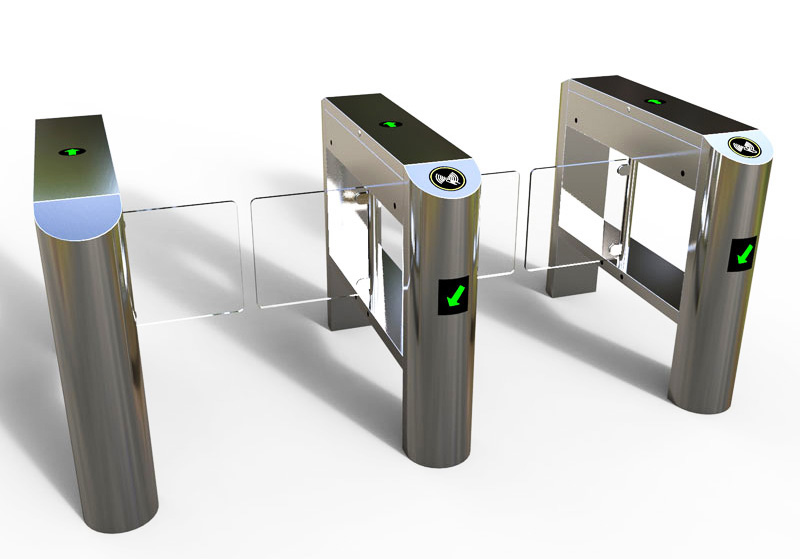

FLIP SW
- POWER SUPPLY: AC 220±10% 50 Hz
- BODY STRUCTURE: SS 304
- DRIVE VOLTAGE: 24 Vdc
- PASSAGE WIDTH: 550 mm
- OPEN SPEED: 0.5 s
- OPEN ANGLE: 90°
- PROTECTION CLASS: IP 43
- PASS SPEED: 30 person/min
- OPERATING TEMPERATURE: -15ᴼC to +60C
- DIMENSION: 100mm x 200mm x 880mm

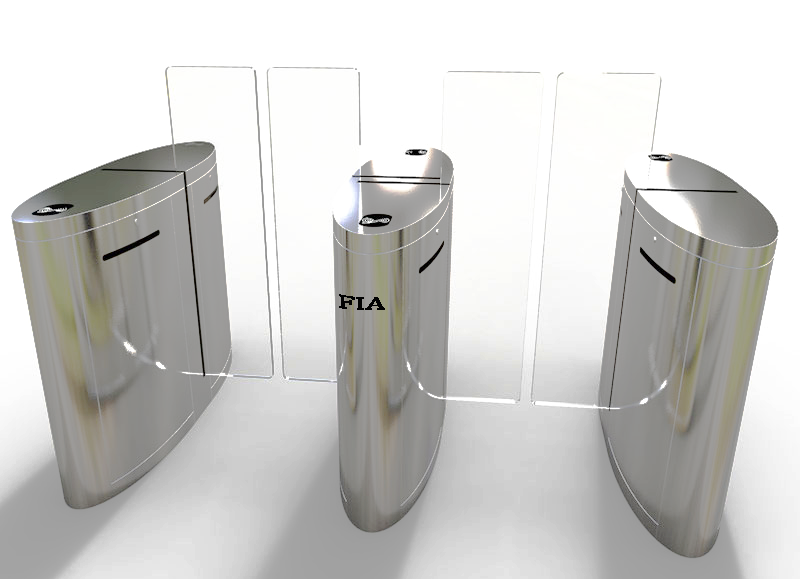

FLIP SL
- POWER SUPPLY: AC 220±10% 50 Hz
- BODY STRUCTURE: SS 304
- DRIVE VOLTAGE: 24 Vdc
- PASSAGE WIDTH: 550 mm
- OPEN SPEED: 0.5 s
- PROTECTION CLASS: IP 43
- PASS SPEED: 30 person/min
- OPERATING TEMPERATURE: -15ᴼC to +60C
- DIMENSION: 1400mm x 350mm x 1000mm

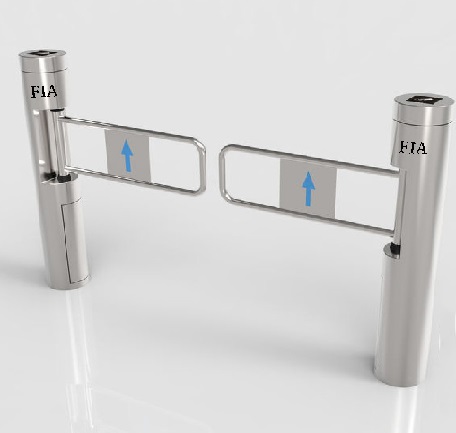

FLIP P SWING
- POWER SUPPLY: AC 220±10% 50 Hz
- BODY STRUCTURE: SS 304
- DRIVE VOLTAGE: 24 Vdc
- PASSAGE WIDTH: 550 mm
- OPEN SPEED: 0.5 s
- PROTECTION CLASS: IP 43
- PASS SPEED: 30 person/min
- OPERATING TEMPERATURE: -15ᴼC to +60C
- DIMENSION: 168mm x 1050mm
