Automatic Sliding Gate Operator

Features:

• Sliding gate motors with inbuilt control unit
• Motors available in AC and DC version
• Manual release key for emergency operations
• Auto reverse function on hitting obstacle during motion
• Smooth Start and slow stop
• Selectable auto close function
• Solar system and battery back-up compatible in DC version
• Oil bath motors for better thermal protection

ERA 800

• MAX GATE WEIGHT: 800kg
• POWER SUPPLY: AC 220V, 50Hz
• POWER COMSUMPTION: 370W
• MOTOR RPM: 1400R/min
• OPRATING SPEED: 46 R/min
• OPERATING TEMPERATURE: -30°C to 60°C
• THERMAL PROTECTION: 110°C
• LIMIT SWITCH: Spring Magnetic

ERA 1200

• MAX GATE WEIGHT: 1200kg
• POWER SUPPLY: AC 220V, 50Hz
• POWER COMSUMPTION: 370W
• MOTOR RPM: 1400R/min
• OPRATING SPEED: 46 R/min
• OPERATING TEMPERATURE: -30°C to 60°C
• THERMAL PROTECTION: 110°C
• LIMIT SWITCH: Spring Magnetic

ERA 1600

• MAX GATE WEIGHT: 1600kg
• POWER SUPPLY: AC 220V, 50Hz
• POWER COMSUMPTION: 370W
• MOTOR RPM: 1400R/min
• OPRATING SPEED: 46 R/min
• OPERATING TEMPERATURE: -30°C to 60°C
• THERMAL PROTECTION: 110°C
• LIMIT SWITCH: Spring Magnetic

ERA 2000

• MAX GATE WEIGHT: 2000kg
• POWER SUPPLY: AC 220V, 50Hz
• POWER COMSUMPTION: 370W
• MOTOR RPM: 1400R/min
• OPRATING SPEED: 46 R/min
• OPERATING TEMPERATURE: -30°C to 60°C
• THERMAL PROTECTION: 110°C
• LIMIT SWITCH: Spring Magnetic

ERA 2400

• MAX GATE WEIGHT: 2400kg
• POWER SUPPLY: AC 220V, 50Hz
• POWER COMSUMPTION: 370W
• MOTOR RPM: 1400R/min
• OPRATING SPEED: 46 R/min
• OPERATING TEMPERATURE: -30°C to 60°C
• THERMAL PROTECTION: 110°C
• LIMIT SWITCH: Spring Magnetic

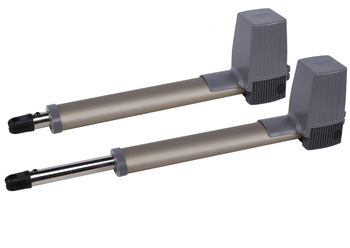

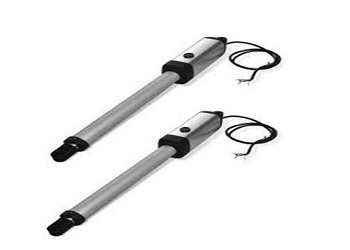

Automatic Swing Gate Operator

Features:

• Compact structure with DC drive mechanism
• Smooth operations with low noise
• Manual release key for emergency operations
• Integration option with Flashing lamp and safety beam
• Button, Remote and keypad interface
• External Control unit
• Selectable auto close function
• Solar system and battery back-up compatible
