INDOOR SECURITY SYSTEMS

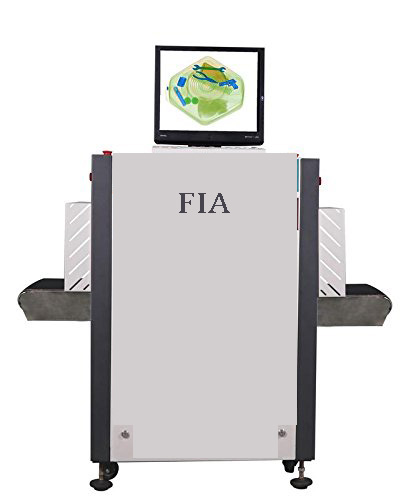

Baggage Scanner
Our Product Baggage Scanner is equipped with HD image collect system which collect high defination image along with good anti interface performance also user can have better choice to save the image in BMP, JPG, JPEG and PNG.
It can also detect dangerous good aided like Weapons Drugs and Explosive.
FBS 4030
- TUNNEL SIZE: 400mm(Width) x 300mm(Height)
- WEIGHT: 310kg
- CONVEYOR SPEED: 0.22m/s (adjustable)
- CONVEYOR MAX LOAD: 170kg
- POWER: 220VAC+/-10%, 50HZ
- RESOLUTION: <0.078mm Metal Wire
- MONITOR: High Resolution Color, LCD Accord, 17 inch.
- IMAGE STORAGE: 60000 in real time.
FBS 5030
- TUNNEL SIZE: 500mm(Width) x 300mm(Height)
- WEIGHT: 318kg
- CONVEYOR SPEED: 0.22m/s (adjustable)
- CONVEYOR MAX LOAD: 170kg
- POWER: 220VAC+/-10%, 50HZ
- RESOLUTION: <0.078mm Metal Wire
- MONITOR: High Resolution Color, LCD Accord, 17 inch.
- IMAGE STORAGE: 60000 in real time.
FBS 6040
- TUNNEL SIZE: 600mm(Width) x 400mm(Height)
- WEIGHT: 500kg
- CONVEYOR SPEED: 0.22m/s (adjustable)
- CONVEYOR MAX LOAD: 170kg
- POWER: 220VAC+/-10%, 50HZ
- RESOLUTION: <0.078mm Metal Wire
- FLIM SAFETY: ISO 1600 Film
- MONITOR: High Resolution Color, LCD Accord, 17 inch.
- IMAGE STORAGE: 60000 in real time.
FBS 1010
- TUNNEL SIZE: 1000mm(Width) x 1000mm(Height)
- WEIGHT: 1358kg
- CONVEYOR SPEED: 0.22m/s (adjustable)
- CONVEYOR MAX LOAD: 170kg
- POWER: 220VAC+/-10%, 50HZ
- RESOLUTION: <0.078mm Metal Wire
- FLIM SAFETY: ISO 1600 Film
- MONITOR: High Resolution Color, LCD Accord, 17 inch.
- IMAGE STORAGE: 60000 in real time.

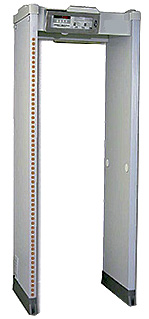

DOOR FRAME METAL DETECTOR
We provide multiple Zones of DFMD for better indoor secturity. Our Door Frame Metal Door is integrated with LED on panels and also Alram system which buzz when someone pass through it with any type of ferrous metal.
DAK 100 1 Zone
- POWER: <30 VA
- POWER SUPPLY: AC 110-220V
- WEIGHT: 70kg
- WORK ENVIONMENT: -20°C~+65ºC
- SENSITIVITY ADJUSTMENT: (0 to 99)
- OUTER FRAME: 220mm(H) x 800mm(w) x 500mm(D)
- INNER FRAME: 2000mm(H) x 700mm(W) x 500mm(D)
- LED: No LED
DAK 600 6 Zones
- POWER: <30 VA
- POWER SUPPLY: AC 110-240V50/60Hz
- WEIGHT: 70kg
- WORK ENVIONMENT: -20°C~+65ºC
- SENSITIVITY ADJUSTMENT: (0 – 255 )
- OUTER FRAME: 220mm(H) x 820mm(w) x 550mm(D)
- INNER FRAME: 2000mm(H) x 700mm(W) x 550mm(D)
- LED: Optional
DAK 1800 18 Zones
- POWER: <30 VA
- POWER SUPPLY: AC 110-240V50/60Hz
- WEIGHT: 70kg
- WORK ENVIONMENT: -20°C~+65ºC
- SENSITIVITY ADJUSTMENT: (0 – 255 )
- OUTER FRAME: 220mm(H) x 820mm(w) x 550mm(D)
- INNER FRAME: 2000mm(H) x 700mm(W) x 550mm(D)
- LED: Infront of Door Panel, sound and light alarm
DAK 3300 33 Zones
- POWER: <30 VA
- POWER SUPPLY: AC 110-240V50/60Hz
- WEIGHT: 70kg
- WORK ENVIONMENT: -20°C~+65ºC
- SENSITIVITY ADJUSTMENT: (0 – 255 )
- OUTER FRAME: 220mm(H) x 820mm(w) x 550mm(D)
- INNER FRAME: 2000mm(H) x 700mm(W) x 550mm(D)
- LED: Infront of Door Panel, sound and light alarm

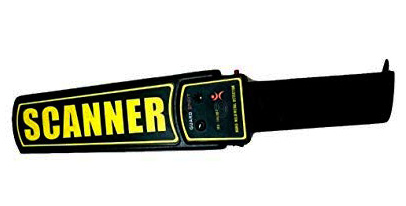

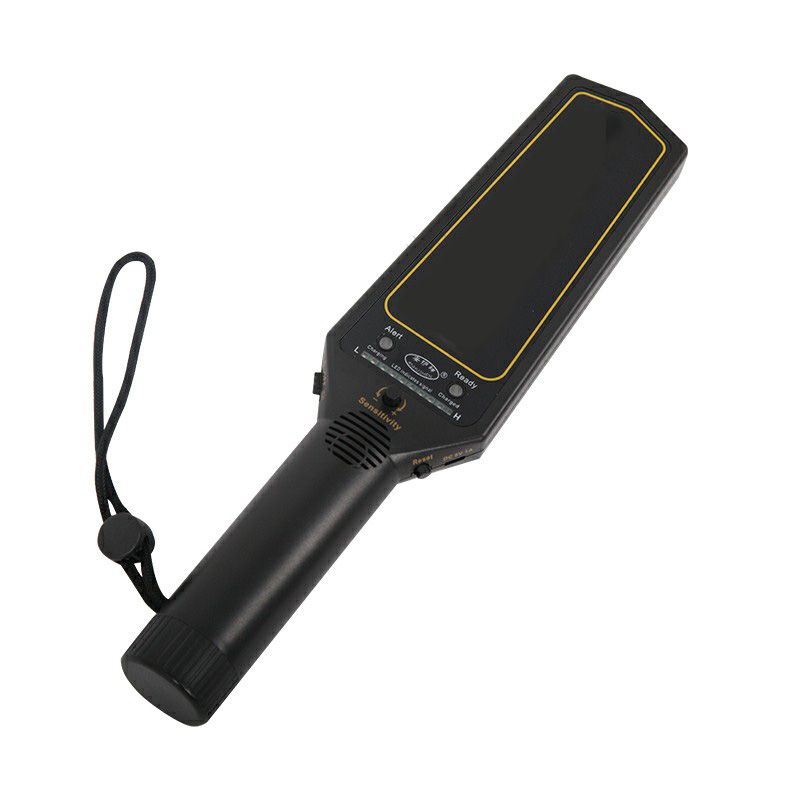

Hand Held Metal Detector
Our Hand Held Metal Detector (HHMD) comes with proven dependability, durability and ultra high sensitivity that can easily detect extremely tiny metal particles.
HAM 50
- POWER SUPPLY: 6F22ND, 9V battery(alkaline rechageble battery)
- ALARM: Simultaneous sound (vibration) and light alarm
- It can be operated simply and protable
- It can be charged
- It is comes with automatic reset fuction switch to chage sensitivity
- It can adjust sensitivity
HAM 100
- POWER SUPPLY: 6F22ND, 9V battery(alkaline rechageble battery)
- ALARM: Simultaneous sound (vibration) and light alarm
- FREQUENCY: 95 KHZ
- INDICATION: The sound gradually rises
- The adjusting button can eliminate interface
- The auto-testing will begin when it is turned on. No need to adjustment
HAM 150
- POWER SUPPLY: 6F22ND, 9V battery(alkaline rechageble battery)
- ALARM: Simultaneous sound (vibration) and light alarm
- FREQUENCY: 22 KHZ
- INDICATION: The sound gradually rises
- STANDBY CURRENT: <5 ma
- The adjusting button can eliminate interface
